Computer Maintenance - Tools and Materials








Torx screwdriver: Used to tighten or loosen screws that have a star-like depression on the top, a feature   that is mainly found on laptops.







Hex driver: Used to tighten or loosen nuts in the same way that a screwdriver tightens or loosens screws  (sometimes called a nut driver).





Needle-nose pliers: Used to hold small parts.





Wire cutters: Used to strip and cut wires.




Tweezers: Used to manipulate small parts.






Flashlight: Used to light up areas that you cannot see well.





Wire stripper: A wire stripper is used to remove the insulation from wire so that it can be twisted to other wires or crimped to connectors to make a cable.





Crimper: Used to attach connectors to wires.




Punch-down tool: Used to terminate wire into termination blocks. Some cable connectors must be connected to cables using a punch down tool.

   Cleaning Tools

Having the appropriate cleaning tools is essential when maintaining and repairing computers. Using the appropriate cleaning tools helps ensure that computer components are not damaged during cleaning. Cleaning tools include the following:





Soft cloth: Used to clean different computer components without scratching or leaving debris







Compressed air: Used to blow away dust and debris from different computer parts without touching the components







Cable ties: Used to bundle cables neatly inside and outside of a computer





Parts organizer: Used to hold screws, jumpers, fasteners, and other small parts and prevents them from getting mixed together
Diagnostic Tool







Digital multimeter: is a device that can take many types of measurements. It tests the integrity of circuits and the quality of electricity in computer components. A digital multimeter displays the information on an LCD or LED.




Loopback adapter:is also called a loopback plug, tests the basic functionality of computer ports. The adapter is specific to the port that you want to test.


Toner probe:The toner part is connected to a cable at one end using specific adapters, such as an RJ-45, coaxial, or metal clips. The toner generates a tone that travels the length of the cable. The probe part traces the cable. When the probe is in near proximity to the cable to which the toner is attached, the tone can be heard through a speaker in the probe.



What is PC Tool kit?


It is actually provides you with all of the tools you will need to repair and maintain your computer. Basically, the features of the tools are depending on the prices itself. However, the most popular tool kits being used contain 20 pieces of kits.

20 Pieces Tool Kits and their function

Chip Inserter
    Chip Inserter with pin straightener



Function: This tool is designed to insert a DIP chip into a circuit board.
Chip extractor
Chip Extractor
Function: These tool is used to remove chips from regular (non-ZIF) sockets, but modern PCs do not generally use these sockets any more. It is useful for upgrading much older systems in some cases.

  Three Prong Parts Retriever

Function: This tool is mainly used to retrieve screws, although is also helpful in retrieving jammed bits in the motherboard.


Assembly Tweezers
 Function: It is a tools used for picking up and manipulating objects too small to be easily handled with human hand.
 Slotted Screwdriver – 1/8″, 3/16″, 1/4″, #1,#2 & #0
Function: It is a good screwdriver with magnetic, interchangeable bits and a comfortable handle. The magnetic tip will prevent screws falling into the PC, and will let you get access to drives mounted deep in your system case.


  Nut Driver 3/16″

 Function: It is the really important one because this is the size of nut most commonly used on PCs. These hexagonal nuts are used as mounting hardware for motherboards and serial and parallel ports.
 Nut Driver 1/4″
Function:  It allows one to use a single handle with a number of sizes instead of having a separate nut driver for each size.
Torx Screwdriver or Bits
Function: These are the star-shaped screwdriver heads that are used to make equipment “tamper-proof”.


  Long Nose Piler
Function: It also can help to cut wires and they can get in and out of tight spots, unlike regular pliers.


Needle Nose Tweezer

Function:These are useful for grasping small items and for removing and replacing jumpers on circuit boards.
 Spare Part Tube
Function: These handy parts tubes is use to hold extra computer screws, nuts and washers.
 Soldering Iron
Function: It is essential for repairing circuit boards but seldom being used and it is quite dangerous for improper use.


 8″ Wire Cutter/Stripper
Function: It is for wire cutting and stripping insulation on single, multiple and fine stranded wire cables with plastic or rubber insulation.
 6″ Adjustable Wrench

Function: It is a spanner with a “jaw” of adjustable width which allow it to be used with different sizes of fastener head (nut, bolt etc.) rather than just one fastener, as with a conventional fixed spanner.

Proper Use of Tools (2.2)

Using tools properly helps prevent accidents and damage to equipment and people. This section describes and covers the proper use of a variety of hardware, software, and organizational tools specific to working with computers and peripherals.

Hardware Tools (2.2.1)

For every job there is the right tool. Make sure that you are familiar with the correct use of each tool and that the correct tool is used for the current task. Skilled use of tools and software makes the job less difficult and ensures that tasks are performed properly and safely.


A toolkit should contain all the tools necessary to complete hardware repairs. As you gain experience, you learn which tools to have available for different types of jobs. Hardware tools are grouped into four categories:
  • ESD tools
  • Hand tools
  • Cleaning tools
  • Diagnostic tools
Figure 2-2 shows some common tools used in computer repair.
Figure 2.2
Figure 2-2.Computer Tools

ESD Tools (2.2.1.2)

There are two ESD tools: the antistatic wrist strap and the antistatic mat. The antistatic wrist strap protects computer equipment when grounded to a computer chassis. The antistatic mat protects computer equipment by preventing static electricity from accumulating on the hardware or on the technician.

Hand Tools (2.2.1.3)

Most tools used in the computer assembly process are small hand tools. They are available individually or as part of a computer repair toolkit. Toolkits range widely in size, quality, and price. Some common hand tools and their uses are:
  • Flat-head screwdriver: Used to tighten or loosen slotted screws.
  • Phillips-head screwdriver: Used to tighten or loosen cross-headed screws.
  • Torx screwdriver: Used to tighten or loosen screws that have a star-like depression on the top, a feature that is mainly found on laptops.
  • Hex driver: Used to tighten or loosen nuts in the same way that a screwdriver tightens or loosens screws (sometimes called a nut driver).
  • Needle-nose pliers: Used to hold small parts.
  • Wire cutters: Used to strip and cut wires.
  • Tweezers: Used to manipulate small parts.
  • Part retriever: Used to retrieve parts from locations that are too small for your hand to fit.
  • Flashlight: Used to light up areas that you cannot see well.
  • Wire stripper: A wire stripper is used to remove the insulation from wire so that it can be twisted to other wires or crimped to connectors to make a cable.
  • Crimper: Used to attach connectors to wires.
  • Punch-down tool: Used to terminate wire into termination blocks. Some cable connectors must be connected to cables using a punch down tool.

Cleaning Tools (2.2.1.4)

Having the appropriate cleaning tools is essential when maintaining and repairing computers. Using the appropriate cleaning tools helps ensure that computer components are not damaged during cleaning. Cleaning tools include the following:
  • Soft cloth: Used to clean different computer components without scratching or leaving debris
  • Compressed air: Used to blow away dust and debris from different computer parts without touching the components
  • Cable ties: Used to bundle cables neatly inside and outside of a computer
  • Parts organizer: Used to hold screws, jumpers, fasteners, and other small parts and prevents them from getting mixed together

Diagnostic Tools (2.2.1.5)

Diagnostic tools are used to test and diagnose equipment. Diagnostic tools include the following:
  • A digital multimeter, as shown in Figure 2-3, is a device that can take many types of measurements. It tests the integrity of circuits and the quality of electricity in computer components. A digital multimeter displays the information on an LCD or LED.


    Figure 2.3
    Figure 2-3.Multimeter
  • loopback adapter, also called a loopback plug, tests the basic functionality of computer ports. The adapter is specific to the port that you want to test.

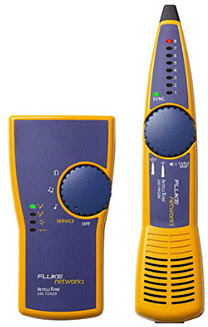

  • The toner probe, as shown in Figure 2-4, is a two-part tool. The toner part is connected to a cable at one end using specific adapters, such as an RJ-45, coaxial, or metal clips. The toner generates a tone that travels the length of the cable. The probe part traces the cable. When the probe is in near proximity to the cable to which the toner is attached, the tone can be heard through a speaker in the probe.
    Figure 2.4
    Figure 2-4.Toner Probe
Although an external hard drive enclosure is not a diagnostic tool, it is often used when diagnosing and repairing computers. The customer hard drive is placed into the external enclosure for inspection, diagnosis, and repair using a known-working computer. Backups can also be recorded to a drive in an external enclosure to prevent data corruption during a computer repair.

Software Tools (2.2.2)

Like hardware tools, there are a variety of software tools that can be used to help technicians pinpoint and troubleshoot problems. Many of these tools are free and several come with the Windows operating system.

Disk Management Tools (2.2.2.1)

Software tools help diagnose computer and network problems and determine which computer device is not functioning correctly. A technician must be able to use a range of software tools to diagnose problems, maintain hardware, and protect the data stored on a computer.
You must be able to identify which software to use in different situations. Disk management tools help detect and correct disk errors, prepare a disk for data storage, and remove unwanted files.
The following are some disk management tools:
  • FDISK: A command-line tool that creates and deletes partitions on a hard drive. The FDISK tool is not available in Windows XP, Vista, or 7. It has been replaced with the Disk Management tool.
  • Disk Management Tool: Initializes disks, creates partitions, and formats partitions.
  • Format: Prepares a hard drive to store information.
  • ScanDisk or CHKDSK: Checks the integrity of files and folders on a hard drive by scanning the file system. These tools might also check the disk surface for physical errors.
  • Defrag: Optimizes space on a hard drive to allow faster access to programs and data.
  • Disk Cleanup: Clears space on a hard drive by searching for files that can be safely deleted.
  • System File Checker (SFC): A command-line tool that scans the operating system critical files and replaces files that are corrupted.
Use the Windows 7 boot disk for troubleshooting and repairing corrupted files. The Windows 7 boot disk repairs Windows system files, restores damaged or lost files, and reinstalls the operating system.


Third-party software tools are also available to assist in troubleshooting problems.

Protection Software Tools (2.2.2.2)

Each year, viruses, spyware, and other types of malicious attacks infect millions of computers. These attacks can damage operating systems, applications, and data. Computers that have been infected may even have problems with hardware performance or component failure.
To protect data and the integrity of the operating system and hardware, use software designed to guard against attacks and to remove malicious programs.
Various types of software protect hardware and data:
  • Windows 7 Action Center: Checks the status of essential security settings. The Action Center continuously checks to make sure that the software firewall and antivirus programs are running. It also ensures that automatic updates download and install automatically.
  • Antivirus program: Protects against virus attacks.
  • Antispyware program: Protects against software that sends information about web surfing habits to an attacker. Spyware can be installed without the knowledge or consent of the user.
  • Window 7 Firewall: Runs continuously to protect against unauthorized communications to and from your computer.

Organizational Tools (2.2.3)

Keeping accurate records and journals during a busy workday can be challenging. Many organizational tools, such as work-order systems, can help the technician document their work.

Reference Tools (2.2.3.1)

A technician must document all repairs and computer problems. The documentation can then be used as a reference for future problems or for other technicians who may not have encountered the problem before. The documents can be paper based, but electronic forms are preferred because they can be easily searched for specific problems.
It is important that a technician document all services and repairs. These documents need to be stored centrally and made available to all other technicians. The documentation can then be used as reference material for similar problems that are encountered in the future. Good customer service includes providing the customer with a detailed description of the problem and the solution.
Personal Reference Tools
Personal reference tools include troubleshooting guides, manufacturer manuals, quick reference guides, and repair journals. In addition to an invoice, a technician keeps a journal of upgrades and repairs. The documentation in the journal includes descriptions of the problem, possible solutions that have been attempted, and the steps taken to repair the problem. Note any configuration changes made to the equipment and any replacement parts used in the repair. This documentation is valuable when you encounter similar situations in the future.
  • Notes: Make notes as you go through the troubleshooting and repair process. Refer to these notes to avoid repeating previous steps and to determine what steps to take next.
  • Journal: Document the upgrades and repairs that you perform. Include descriptions of the problem, possible solutions that have been tried to correct the problem, and the steps taken to repair the problem. Note any configuration changes made to the equipment and any replacement parts used in the repair. Your journal, along with your notes, can be valuable when you encounter similar situations in the future.
  • History of repairs: Make a detailed list of problems and repairs, including the date, replacement parts, and customer information. The history allows a technician to determine what work has been performed on a specific computer in the past.
Internet Reference Tools
The Internet is an excellent source of information about specific hardware problems and possible solutions:
  • Internet search engines
  • News groups
  • Manufacturer FAQs
  • Online computer manuals
  • Online forums and chat
  • Technical websites

Miscellaneous Tools (2.2.3.2)

With experience, you will discover many additional items to add to the toolkit. Figure 2-5shows how a roll of masking tape can be used to label parts that have been removed from a computer when a parts organizer is not available.
Figure 2.5
Figure 2-5.Parts Labels
A working computer is also a valuable resource to take with you on computer repairs in the field. A working computer can be used to research information, download tools or drivers, and communicate with other technicians.
Figure 2-6 shows the types of computer replacement parts to include in a toolkit. Make sure that the parts are in good working order before you use them. Using known good components to replace possible bad ones in computers helps you quickly determine which component is not working properly.
Figure 2.6
Figure 2-6.Replacement Computer Parts

Demonstrate Proper Tool Use (2.2.4)

This section describes the proper use of common tools used to protect, repair, and clean computers and peripherals.

Antistatic Wrist Strap (2.2.4.1)

Safety in the workplace is everyone’s responsibility. You are much less likely to injure yourself or damage components when using the proper tool for the job.


Before cleaning or repairing equipment, make sure that your tools are in good condition. Clean, repair, or replace items that are not functioning adequately.
An example of ESD is the small shock that you receive when you walk across a carpeted room and touch a doorknob. Although the small shock is harmless to you, the same electrical charge passing from you to a computer can damage its components. Self-grounding or wearing an antistatic wrist strap can prevent ESD damage to computer components.
The purpose of self-grounding or wearing an antistatic wrist strap is to equalize the electrical charge between you and the equipment. Self-grounding is done by touching a bare metal part of a computer case. The antistatic wrist strap is a conductor that connects your body to the equipment that you are working on. When static electricity builds up in your body, the connection made by the wrist strap to the equipment, or ground, channels the electricity through the wire that connects the strap.
As shown in Figure 2-7, the wrist strap has two parts and is easy to wear. Following is the proper procedure for using an antistatic wrist strap:
  • Step 1. Wrap the strap around your wrist and secure it using the snap or Velcro. The metal on the back of the wrist strap must remain in contact with your skin at all times.
  • Step 2. Snap the connector on the end of the wire to the wrist strap, and connect the other end either to the equipment or to the same grounding point that the antistatic mat is connected to. The metal skeleton of the case is a good place to connect the wire. When connecting the wire to equipment that you are working on, choose an unpainted metal surface. A painted surface does not conduct electricity as well as unpainted metal.
    Figure 2.7
    Figure 2-7.Antistatic Wrist Strap
Although wearing a wrist strap helps prevent ESD, you can further reduce the risks by not wearing clothing made of silk, polyester, or wool. These fabrics are more likely to generate a static charge.

Antistatic Mat (2.2.4.2)

You might not always have the option to work on a computer in a properly equipped workspace. If you can control the environment, try to set up your workspace away from carpeted areas. Carpets can cause the buildup of electrostatic charges. If you cannot avoid the carpeting, ground yourself to the unpainted portion of the case of the computer on which you are working before touching any components.
An antistatic mat is slightly conductive. It works by drawing static electricity away from a component and transferring it safely from equipment to a grounding point, as shown in Figure 2-8. Following is the proper procedure for using an antistatic mat:
  • Step 1. Lay the mat on the workspace next to or under the computer case.
  • Step 2. Clip the mat to the case to provide a grounded surface on which you can place parts as you remove them from the system.
    Figure 2.8
    Figure 2-8.Antistatic Mat
When you are working at a workbench, ground the workbench and the antistatic floor mat. By standing on the mat and wearing the wrist strap, your body has the same charge as the equipment and reduces the probability of ESD. Either connect the table-top mat and the floor mat to each other, or connect both to the electrical earth ground.
Reducing the potential for ESD reduces the likelihood of damage to delicate circuits or components.

Hand Tools (2.2.4.3)

A technician needs to be able to properly use each tool in the toolkit. This topic covers many of the various hand tools used when repairing computers.
Screws
Match each screw with the proper screwdriver. Place the tip of the screwdriver on the head of the screw. Turn the screwdriver clockwise to tighten the screw and counterclockwise to loosen the screw.
Screws can become stripped if you over-tighten them with a screwdriver. A stripped screw, as shown in Figure 2-9, may get stuck in the screw hole, or it may not tighten firmly. Discard stripped screws.
Figure 2.9
Figure 2-9.Stripped Screw
Flat-Head Screwdriver
Use a flat-head screwdriver when you are working with a slotted screw. Do not use a flat-head screwdriver to remove a Phillips-head screw. Never use a screwdriver as a pry bar. If you cannot remove a component, check to see if there is a clip or latch that is securing the component in place.
Phillips-Head Screwdriver
Use a Phillips-head screwdriver with crosshead screws. Do not use this type of screwdriver to puncture anything. This will damage the head of the screwdriver.
Hex Driver
Use a hex driver, shown in Figure 2-10, to loosen and tighten bolts that have a hexagonal (six-sided) head. Hex bolts should not be over-tightened because the threads of the bolts can be stripped. Do not use a hex driver that is too large for the bolt that you are using.
Figure 2.10
Figure 2-10.Hex Driver
Component Retrieving Tools
Needle-nose pliers and tweezers can be used to place and retrieve parts that may be hard to reach with your fingers. There are also tools called part retrievers that are specifically designed for this task. Do not scratch or hit any components when using these tools.
A computer technician needs proper tools to work safely and prevent damage to the computer equipment. A technician uses many tools to diagnose and repair computer problems:
  • Straight-head screwdriver, large and small
  • Phillips-head screwdriver, large and small
  • Tweezers or part retriever
  • Needle-nosed pliers
  • Wire cutters
  • Chip extractor
  • Hex wrench set
  • Torx screwdriver
  • Nut driver, large and small
  • Three-claw component holder
  • Wire stripper
  • Crimper
  • Punch-down tool
  • Digital multimeter
  • Wrap plugs
  • Small mirror
  • Small dust brush
  • Soft, lint-free cloth
  • Cable ties
  • Scissors
  • Small flashlight
  • Electrical tape
  • Pencil or pen
  • Compressed air
Various specialty tools, such as Torx bits, antistatic bags and gloves, and integrated circuit pullers, can be used to repair and maintain computers. Always avoid magnetized tools, such as screwdrivers with magnetic heads, or tools that use extension magnets to retrieve small metal objects that are out of reach. Using magnetic tools can cause loss of data on hard drives and floppy disks. Magnetic tools can also induce current, which can damage internal computer components.
Additionally, there are specialized testing devices used to diagnose computer and cable problems:
  • Multimeter: A device that measures AC/DC voltage, electric current, and other cable and electrical characteristics.
  • Power supply tester: A device that checks whether the computer power supply is working properly. A simple power supply tester might just have indicator lights, while more advanced versions show the amount of voltage and amperage.
  • Cable tester: A device that checks for wiring shorts or faults, such as wires connected to the wrong pin.
  • Loopback plug: A device that connects to a computer, hub, switch, or router port to perform a diagnostic procedure called a loopback test. In a loopback test, a signal is transmitted through a circuit and then returned to the sending device to test the integrity of the data transmission.


Cleaning Materials (2.2.4.6)

Keeping computers clean inside and out is a vital part of a maintenance program. Dirt can cause problems with the physical operation of fans, buttons, and other mechanical components. On electrical components, an excessive buildup of dust acts like an insulator and traps the heat. This insulation impairs the ability of heat sinks and cooling fans to keep components cool, causing chips and circuits to overheat and fail.
Computer Cases and Monitors
Clean computer cases and the outside of monitors with a mild cleaning solution on a damp, lint-free cloth. Mix one drop of dishwashing liquid with 4 oz (118 ml) of water to create the cleaning solution. If water drips insi
